Setting Up Sand and Water Particles with xpEmitter
In X-Particles, the Simulate (Legacy) and Simulate modes in xpEmitter differ in how particles are emitted.
- Simulate (Legacy): This mode emits particles from the first frame of the animation (usually the first frame, not frame 0). It is used as the default setting for compatibility with previous versions.
- Simulate: This mode is almost identical to Simulate (Legacy) but differs in that particles are emitted from the base frame.
The main difference between these two modes is the frame at which particles are emitted, which can affect the starting point of the animation.
nxFluids Solver Options
- Smoothing Radius: This option sets the interaction range between particles. A larger Smoothing Radius results in smoother and wider interactions between particles, while a smaller value provides more detailed interactions.
- Substeps: This option divides each frame of the simulation into smaller steps for calculation. Increasing the Substeps value enhances the accuracy of the simulation but may increase computation time.
- Min Density: This sets the minimum density of fluid particles. It prevents the fluid from becoming too sparse during the simulation.
- Max Density: This sets the maximum density of fluid particles. It prevents the fluid from becoming too compressed, maintaining the stability of the simulation.
- Max Compression: This option sets the maximum degree to which fluid particles can be compressed. It helps maintain the physical properties of the fluid while enhancing the realism of the simulation.
- Velocity Correction: This option corrects the velocity of particles to improve the accuracy of the simulation. It plays a crucial role in balancing the speed and pressure of particles.
The Solver options in nxFluids provide various settings to adjust the accuracy and quality of fluid simulations. Here are the details for each option:
Using Granular Simulation in nxFluids
To enhance a granular simulation, you can increase the Substeps and Friction. Higher Stability ensures that particles do not break apart easily.

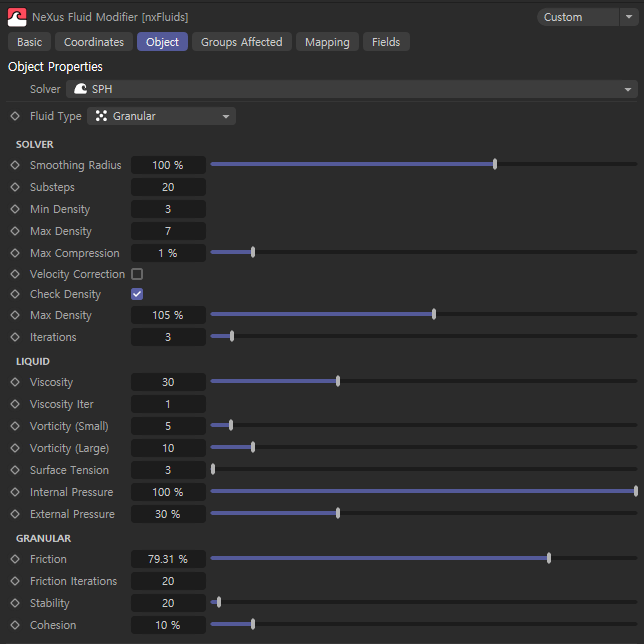

Granular Options in nxFluids
- Friction: This option sets the friction between particles. Higher friction values cause particles to resist each other more, slowing down their movement. Lower friction values allow particles to move more freely.
- Friction Iterations: This sets the number of iterations for friction calculations. Increasing this value makes the friction calculations more precise but can increase simulation time.
- Stability: This option adjusts the stability of the particle simulation. Higher stability values make particles move more steadily, while lower values can make the simulation unstable.
- Cohesion: This sets the cohesion force between particles. Higher cohesion values make particles stick together more strongly, while lower values allow particles to separate more easily.
Using Check Density in nxFluids

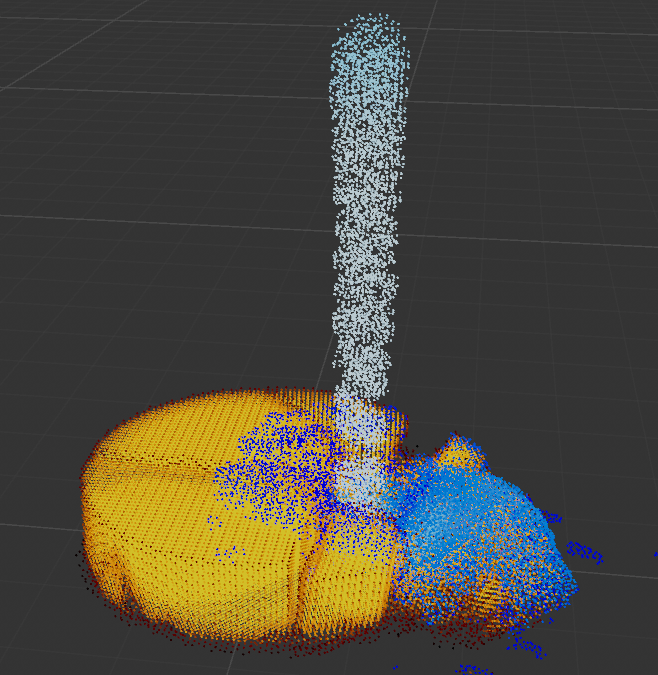

When using an xpEmitter set to Water, particles may spread out due to overlapping areas. To address this, you can use the Check Density option in nxFluids.
Check Density
Description: The Check Density option checks and adjusts the density of particles during the simulation. When enabled, it ensures that the particle density remains within the specified range throughout the simulation.
Use Case: This is used to maintain the stability of the simulation by preventing the particle density from becoming too low or too high.
Max Density
Description: The Max Density option sets the maximum density of particles. This prevents the fluid from becoming too compressed, maintaining the stability of the simulation.
Use Case: Adjust this setting in fluid simulations like water or oil to prevent particles from becoming overly compressed.
Iteration
Description: The Iteration option sets the number of calculation repetitions per frame in the simulation. Increasing this value improves the accuracy of the simulation but can increase computation time.
Use Case: Use higher iteration values for complex fluid simulations where greater accuracy is required to achieve precise results.
To simulate both Liquid and Granular behaviors in nxFluids, you can attach an nxFluids Tag to an xpEmitter set to Water and configure it for Liquid.

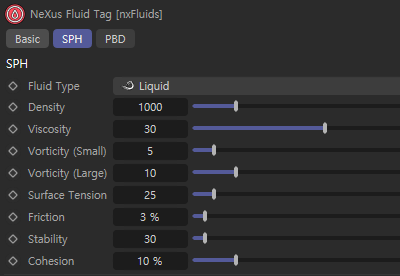

Detailed Explanation of nxFluids Tag Options:
1.Density
Description: Sets the density of particles. Density is a crucial factor that determines the physical properties of the fluid, such as weight and buoyancy.
Use Case: Used to simulate fluids with different densities, like water and oil.
2.Viscosity
Description: Sets the viscosity of the fluid. Viscosity represents the fluid's resistance to flow; higher viscosity means the fluid moves more slowly.
Use Case: Used to simulate high-viscosity fluids like honey or paint.
3.Vorticity (Small)
Description: Sets the small-scale vorticity effects. This setting generates small vortices and turbulence within the fluid.
Use Case: Used to simulate small whirlpools or bubbles in water.
4.Vorticity (Large)
Description: Sets the large-scale vorticity effects. This setting generates large vortices and turbulence within the fluid.
Use Case: Used to simulate large whirlpools in rivers or oceans.
5.Surface Tension
Description: Sets the surface tension of the fluid. Surface tension is the force that causes the surface of a fluid to contract, which is why water droplets form spherical shapes.
Use Case: Used to simulate water droplets or soap bubbles.
6.Friction
Description: Sets the friction between particles. Higher friction values cause particles to resist each other more, slowing down their movement.
Use Case: Used in simulations of granular materials like sand or grains.
7.Stability
Description: Adjusts the stability of the particle simulation. Higher stability values make particles move more steadily.
Use Case: Used to prevent the simulation from becoming unstable.
8.Cohesion
Description: Sets the cohesion force between particles. Higher cohesion values make particles stick together more strongly.
Use Case: Used to simulate the cohesive effects in materials like sand or mud.
Mapping Function in nxFluids

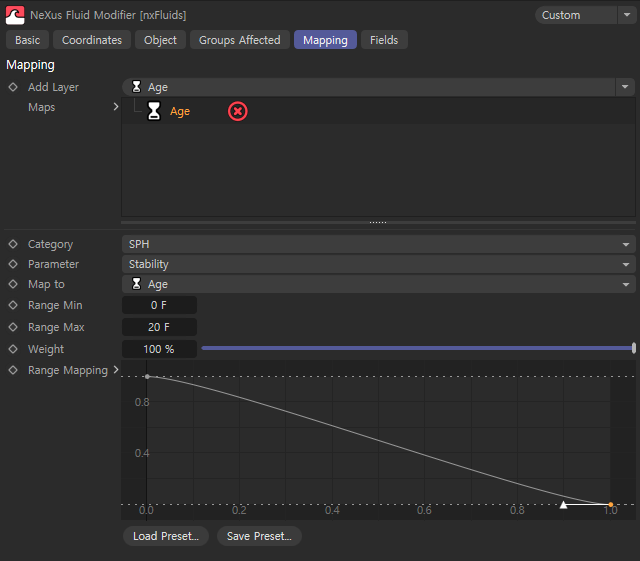

The Mapping function in nxFluids is used to control and adjust various attributes of fluid simulations. Through Mapping, you can dynamically change particle properties, forces, colors, and more. For example, by lowering Stability according to Particle Age, you can create a granular simulation where particles break down over time.
Data Mapping
Description: Data Mapping is used to control various attributes of particles, such as speed, density, and temperature.
Use Case: Change the color of particles based on their speed or adjust the size of particles under specific conditions.
Vertex Map
Description: Vertex Map assigns specific values based on the position of particles. This allows dynamic changes in color or other attributes based on particle location.
Use Case: Implement effects where the color of water droplets changes based on their falling position.
Weight Map
Description: Weight Map assigns values based on the weight of particles. This allows adjustments to simulation properties based on particle weight.
Use Case: Set heavier particles to move more slowly or lighter particles to move faster.
Blend Modes
Description: Blend Modes combine multiple maps to create complex effects. Various blend modes can be used to precisely control changes in particle attributes.
Use Case: Combine particle color and speed to create intricate visual effects.
Custom Data Maps
Description: Custom Data Maps allow users to define data to control particle attributes. This enables the creation of highly specific simulation effects.
Use Case: Implement complex simulations where particle size or color changes dynamically under certain conditions.
